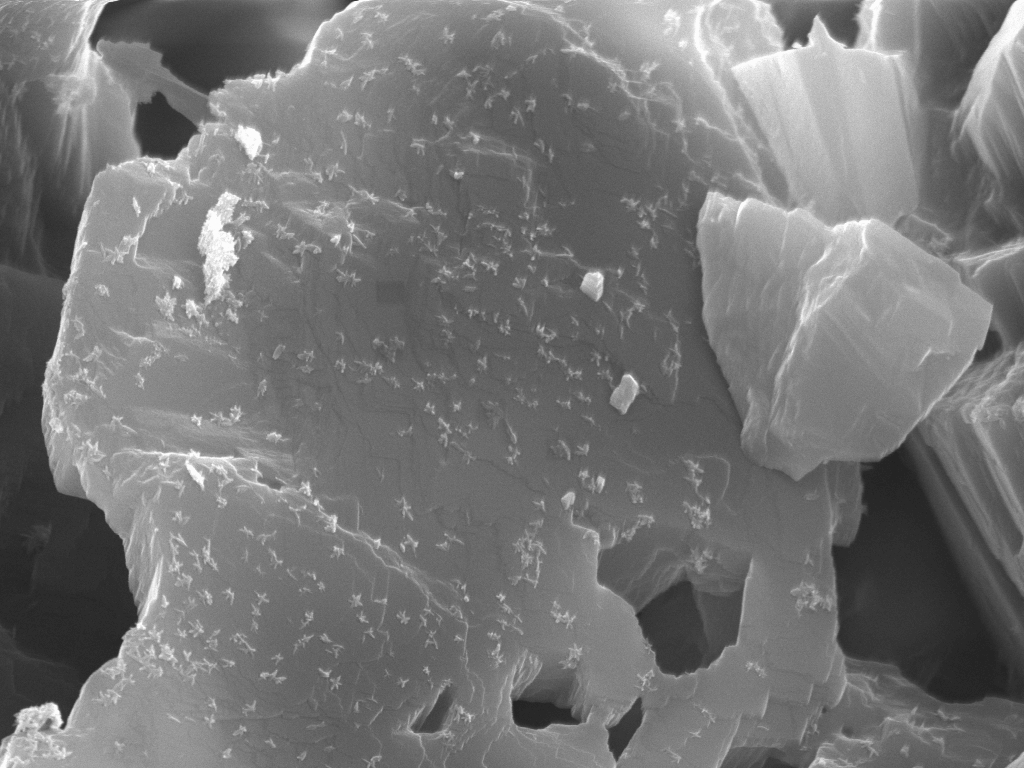

SEM image (7500x) of Ghostown white punk rock, Lechuguilla Cave. Note the
very tiny star-like objects coating the dolomite substrate. Samples are Au-Pd
coated. Photo by Spilde and Northup.
|
|

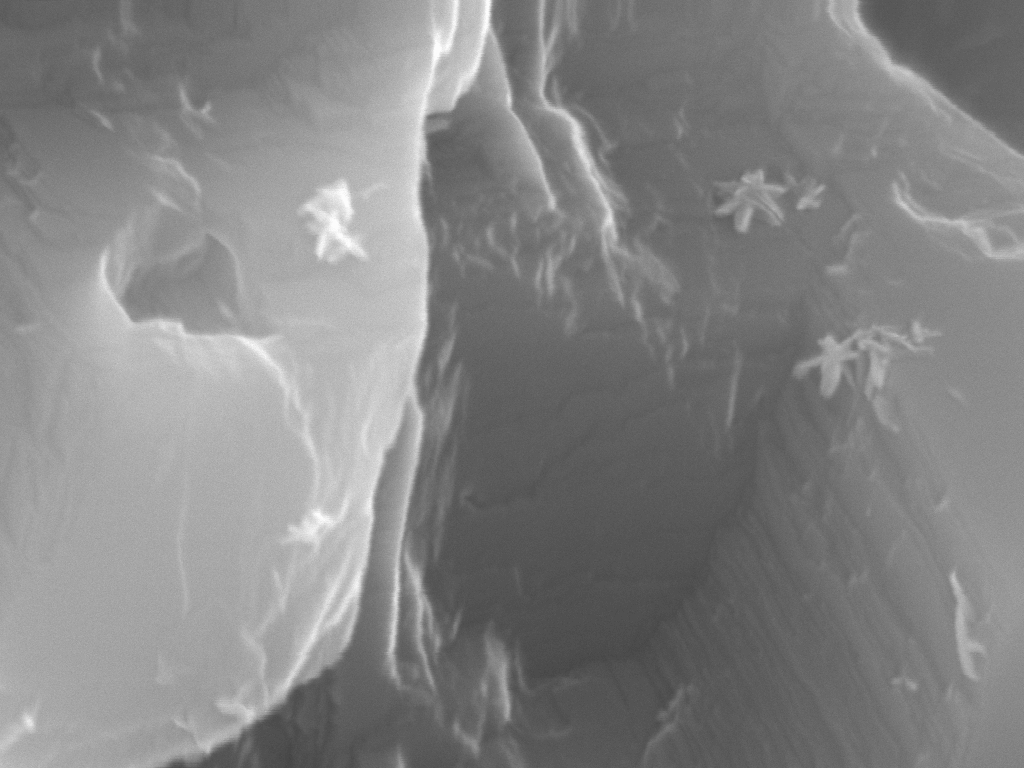

Closeup SEM image (30,000x) of previous photomigrgraph of Ghostown
white punk rock. Note the very tiny star-like objects on dolomite
substrate. Samples are Au-Pd coated. Photo by Spilde and Northup.
|
|

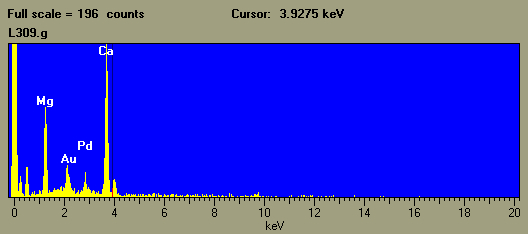

EDS spectrum of tiny star-like objects. No iron is present in the
analysis. Samples are Au-Pd coated. Analysis by Spilde and Northup.
|
|

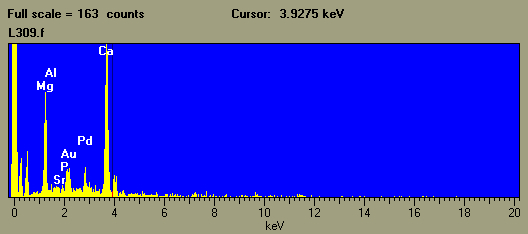

EDS spectrum of background between star-like objects in the Ghostown white
punk rock. Samples are Au-Pd coated. Analysis by Spilde and Northup.
|
|

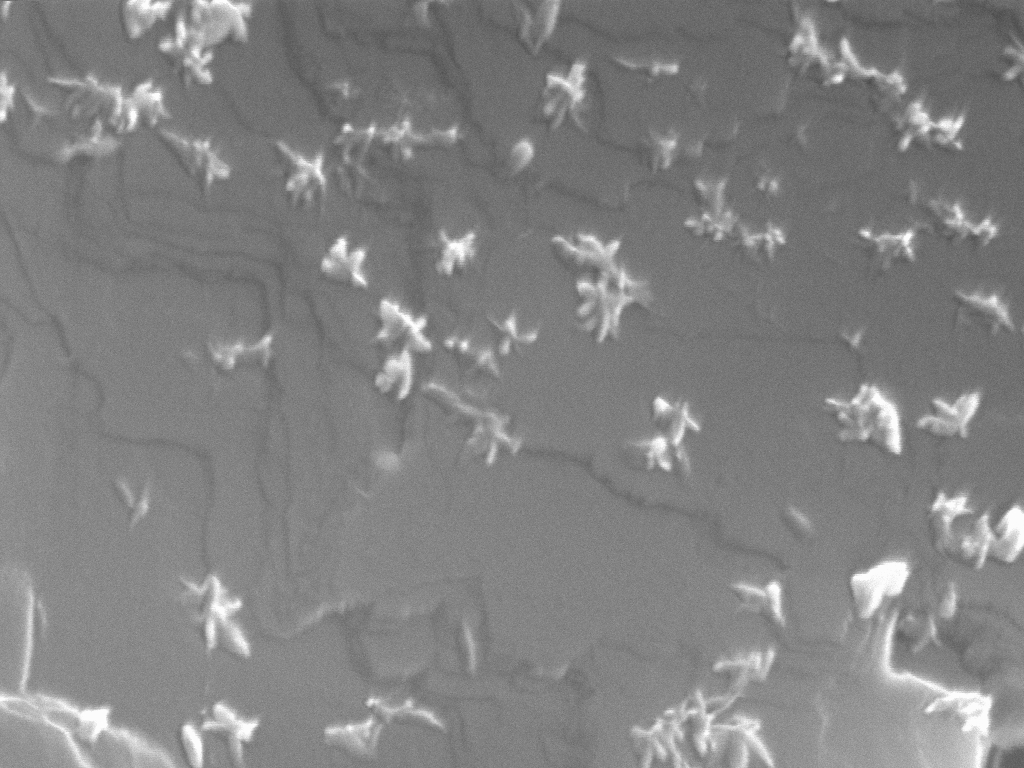

Closeup SEM image (27,000x) of Ghostown white punk rock. Note the very tiny
star-like objects on dolomite substrate. Samples are Au-Pd coated. Photo by
Spilde and Northup.
|
|

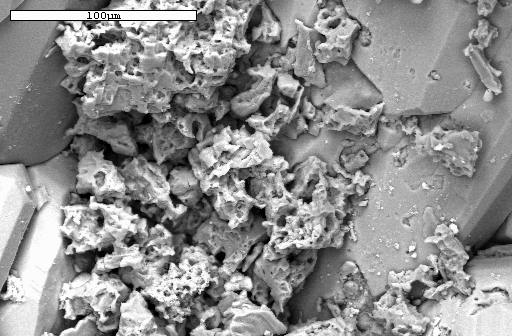

SEM image of calcite crystals with porous, dissolved dolomite from gypsum
sample from EY56 in the Western Borehole. Photo by Spilde, Northup, and
Boston.
|
|
SEM image of dolomite from gypsum sample from EY56 in the Western Borehole.
Photo by Spilde, Northup, and Boston.
|
|
EDS spectrum of gypsum sample from EY56 site in the Western Borehole.
Peaks suggest the presence of dolomite. Samples are Au-Pd coated. Analysis
by Spilde, Northup, and Boston.
|
|

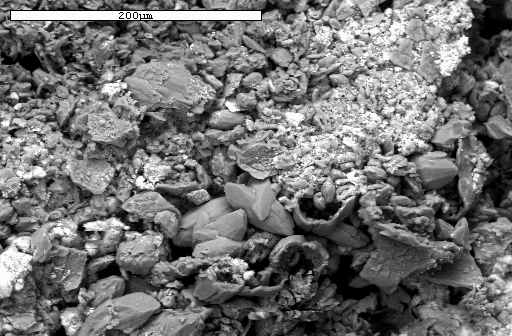

SEM image of dolomite in the outer wall rock sample from EY56 site in the
Western Borehole. Photo by Spilde, Northup, and Boston.
|
|
EDS spectrum of the area between the larger dolomite crystals in the outer
wall rock sample from EY56 site in the Western Borehole. A strong iron
signal is observed. Not shown, but detected in the surrounding areas are
barite crystals and gypsum particles. Samples are Au-Pd coated. Analysis
by Spilde, Northup, and Boston.
|
