Clicking on the images will display larger versions of the photos.
|

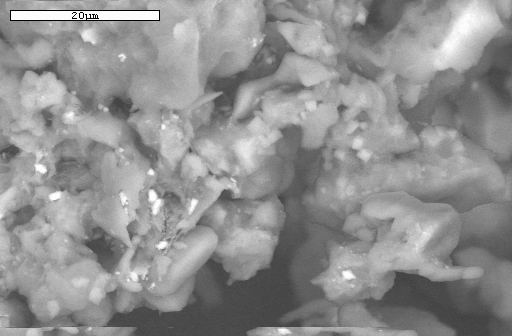

SEM image of black corrosion residue from EY56, Western Borehole.
Photo by Spilde, Northup, and Boston.
|
|
EDS spectrum of black corrosion residue from EY56, Western Borehole. Note
presence of manganese peak. Samples are Au-Pd coated. Analysis by Spilde,
Northup, and Boston.
|
|
EDS spectrum of black corrosion residue from EY56, Western Borehole. Note
presence of rare earth elements associated with phosphorus. Samples are
Au-Pd coated. Analysis by Spilde, Northup, and Boston.
|
|
EDS spectrum of black corrosion residue from EY56, Western Borehole. Note
presence of strong manganese peak.
Samples are Au-Pd coated.
Analysis by Spilde, Northup, and Boston.
|
|
EDS spectrum of black corrosion residue from EY56, Western Borehole. Note
presence of strong manganese peak and minor sulfur and magnesium peaks.
Samples are Au-Pd coated.
Analysis by Spilde, Northup, and Boston.
|
|
EDS spectrum of black corrosion residue from EY56, Western Borehole. Note
presence of manganese, sulfur, and magnesium peaks.
Samples are Au-Pd coated.
Analysis by Spilde, Northup, and Boston.
|
